As more Calgarians switch to electric vehicles (EVs), one of the most common questions we hear is, “What kind of outlet do I need to charge my EV at home?” The answer depends on your vehicle, your driving habits, and your home’s electrical system. In Canada, there are three main levels of EV charging — each using different outlet types, voltages, and installation requirements.

This guide breaks down the most common types of EV outlets used across Calgary and Alberta, what they’re best suited for, and how to choose the right setup for your home.

Level 1, Level 2, and Level 3 EV Charging Explained

Before we dive into outlet types, it’s important to understand the three levels of EV charging available in Canada:

• Level 1: Uses a standard 120V household outlet (Type B). It’s the slowest but easiest to set up — ideal for plug-in hybrids or occasional charging.
• Level 2: Uses a 240V circuit (NEMA 14-50 or 6-50 outlet). This is the most popular choice for homeowners because it provides a full charge in 6–10 hours.
• Level 3: Also known as DC Fast Charging. These are high-voltage commercial systems (400–800V) that can charge an EV to 80% in under 30 minutes. Not suitable for home use — they require dedicated grid infrastructure.

Common EV Outlet Types Used in Calgary

1. NEMA 5-15 (Standard Household Plug)

This is the same outlet you use for everyday appliances. It delivers 120 volts and up to 12 amps, adding roughly 6–8 kilometers of range per hour of charging. It’s slow but convenient — simply plug your EV’s charging cable into any standard outlet. Great for overnight trickle charging or plug-in hybrids.

2. NEMA 6-50 (240V, 50 Amp)

The NEMA 6-50 outlet is a popular choice for garage installations. It delivers 240 volts and up to 50 amps, providing around 35–40 kilometers of range per hour of charge. Many Tesla wall connectors and other Level 2 chargers can be hardwired or connected via a 6-50 outlet. It’s a robust, simple setup ideal for most homeowners.

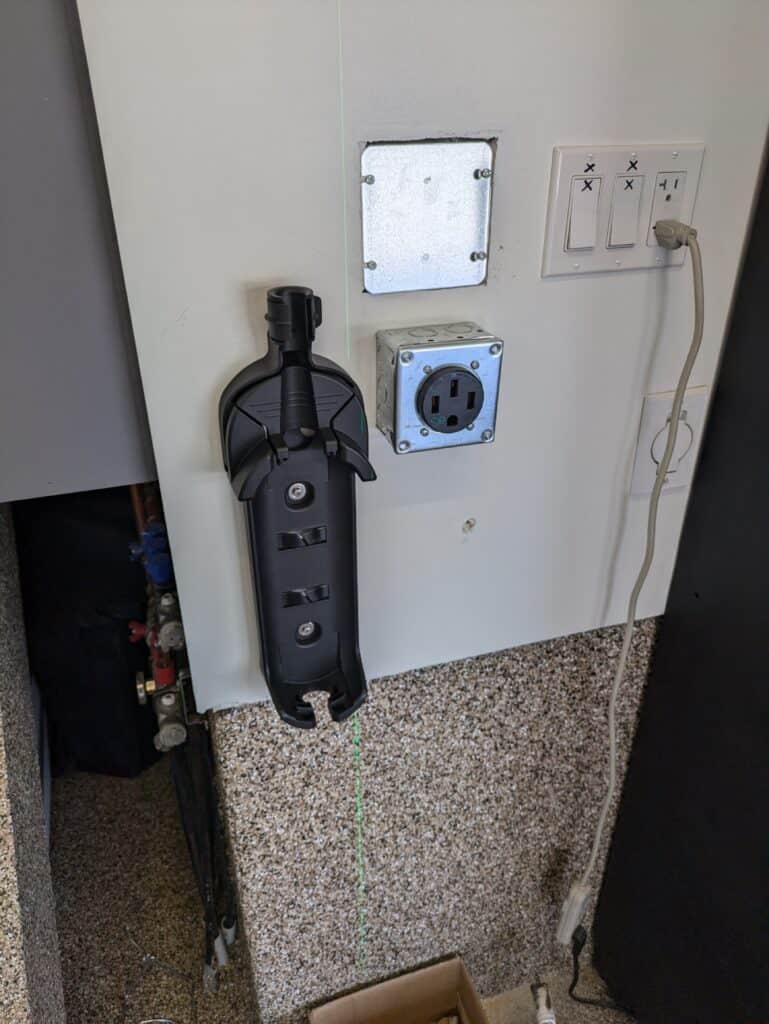

3. NEMA 14-50 (240V, 50 Amp)

The NEMA 14-50 outlet is another common Level 2 option, featuring four prongs (two hots, one neutral, one ground). It’s the same outlet used for RVs and electric ranges. Many EVs — including Tesla, Ford, and Hyundai models — support this outlet with the appropriate adapter. It provides roughly the same charging performance as a 6-50 but with added neutral support for certain EVSE models.

4. Hardwired Wall Connectors (Tesla and Universal)

For the fastest and cleanest home setup, many Calgary EV owners choose a hardwired wall connector. These units connect directly to your electrical panel, eliminating the need for a plug and maximizing current delivery. They’re ideal for homeowners who want a permanent, weather-resistant, and visually clean installation.

5. CCS and CHAdeMO (Fast Charging Connectors)

While not used for home charging, it’s worth noting that public DC Fast Chargers in Calgary use either CCS (Combined Charging System) or CHAdeMO connectors. These are for Level 3 charging, typically found at shopping centers, rest stops, and commercial EV stations.

Choosing the Right EV Outlet for Your Calgary Home

When selecting an EV outlet, consider:

• Panel capacity: Older homes with 60A or 100A panels may need a panel upgrade before installing a 240V charger.
• Distance from panel to garage: Longer wire runs can increase cost and voltage drop — placement matters.
• Vehicle compatibility: Check your manufacturer’s recommendations for maximum charging amperage and plug type.
• Future needs: If you plan to buy a second EV, installing a dual charger or higher-capacity circuit now can save on future upgrades.

EV Charger Outlet Installation in Calgary

At Panel Upgrade Experts, we specialize in EV charger installations, electrical service upgrades, and panel replacements to ensure your home is ready for safe, efficient charging. Our team can assess your electrical capacity, recommend the ideal outlet, and handle all permitting and inspection requirements under the Canadian Electrical Code.

Whether you drive a Tesla, Ford Lightning, Hyundai Ioniq, or any other EV, we’ll help you choose the right charger and outlet setup for your needs.
